Sign Bracing
Sign bracing is an adjustable stiffening and clamping system for mounting signs to square, round, I-beam, mast arm and wood posts. Available in 12' and 24' sections, each piece can be custom cut or spliced to fit sign width.
- Supports signs in high wind areas
- Attach with bolts, drive rivets or VHB tape
- Signs can be offset in case of limited sign support space
| Part Number | Description |
|---|---|

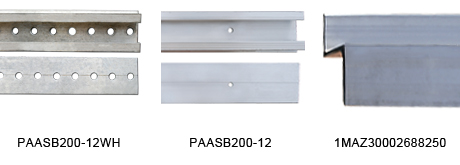

| PAASB200-12WH | 12' x 2" Aluminum Sign Brace with 3/8" holes on 1" centers for attachment of sign substrate |
| PAASB200-24WH | 24' x 2" Aluminum Sign Brace with 3/8" holes on 1" centers for attachment of sign substrate |
| PAASB200-12 | 12' x 2" Aluminum Sign Brace with 3/16" holes on 6" centers for attachment of sign substrate |
| PAASB200-24 | 24' x 2" Aluminum Sign Brace with 3/16" holes on 6" centers for attachment of sign substrate |
| 1MAZ30002688250 | Aluminum Z-bar is used as a sign support and stiffener on large interstate signs. We offer a 3" x 2 11/16" x 1/4" Z-bar in multiple lengths |
Sign Bracing Clamps
| Part Number | Description | Post |
|---|---|---|

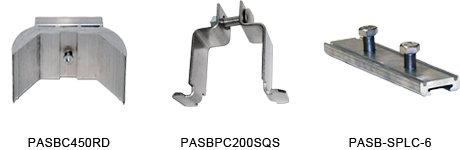

| PASBC450RD | Sign Brace Clamp for 4 1/2" posts and up, used with stainless steel banding | Round |
| PASBPC200SQS | Sign Brace Clamp for 2" post with hardware | Square |
| PASBPC250SQS | Sign Brace Clamp for 2 1/2" post with hardware | Square |
| PASBPC300SQS | Sign Brace Clamp for 3" post with hardware | Square |
| PASBPCS44W | Sign Brace Clamp for 4" x 4" post with hardware | Wood |
| PASBPCS46W | Sign Brace Clamp for 4" x 6" post with hardware | Wood |
| PASBPCS66W | Sign Brace Clamp for 6" x 6" post with hardware | Wood |
| PAASB-SPLC-6 | Aluminum Sign Brace Splice used for joining two separate pieces of sign bracing | N/A |

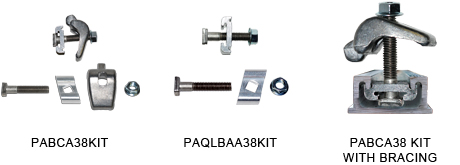

| PABCA38KIT | J Type Clamp for I-beam with Aluminum T-Head Bolt and Quick Lock Adapter | N/A |
| PAQLBAA38KIT | Quick Lock Bolt Adapter with 3/8" x 2" T-Head Bolt | N/A |
| PAQLBAA38KIT3 | Quick Lock Bolt Adapter with 3/8" x 3" T-Head Bolt | N/A |
Sign Bracing Fasteners
| Part Number | Description |
|---|---|
| HF4950100 | Double Sided VHB Tape 1" x 36 yds. |
| HF4950150 | Double Sided VHB Tape 1 1/2" x 36 yds. |
VHB Tape
3M™ VHB Tape is a doubled sided tape with high holding strength to replace screws, rivets, welds, and silicones for static and dynamic loads.
| Part Number | Description |
|---|---|
| HFSPDRA-316B | Blue Sign Panel Drive Rivet |
| HFSPDRA-316G | Green Sign Panel Drive Rivet |
| HFSPDRA-316Y | Yellow Sign Panel Drive Rivet |
| HFSPDRA-316BR | Brown Sign Panel Drive Rivet |
Sign Panel Drive Rivets
Sign Panel Drive Rivet with protective nylon washer. Available in standard highway colors to match sheeting.
For additional information on Sign Bracing please contact the office and our customer service representatives will gladly provide more information on your options - Email Us or call (800) 296-6050.
