Strapping & Mounting Hardware



BAND-IT® Band and Buckle systems are used to mount traffic signs, security devices and enclosures. Their specially designed reinforcement ribs allow the system to withstand stress and wind vibration. Each mounting bracket is fully threaded to solidly anchor attachment bolts. Hex head bolts with metal and fiber washers available, no nuts required. Strapping also available in a variety of band sizes providing superior performance, UV resistance, and durability.


Strapping and Mounting Hardware

Brackets & Mounting Hardware

Part Number Description Quantity

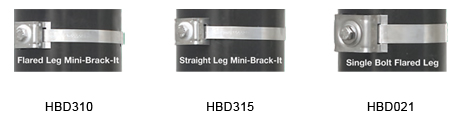

HBD310 Flared Leg Mini-Brack-It, SS with SS bolt and fiber washer.
1/2" slot
50/box
HBD315 Straight Leg Mini-Brack-It, SS with SS bolt and fiber washer. 1/2" slot 50/box
HBD021 Single Bolt Flared Leg SS Brack-It with SS bolt, washer and fiber washer. 3/4" slot 50/box

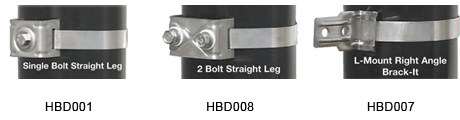

HBD001 Single Bolt Straight Leg SS with SS bolt, washer and fiber washer. 3/4" slot 50/box
HBD008 2 Bolt Straight Leg SS Brack-It with SS bolt, washer and fiber washer. 3/4" slot 50/box
HBD007 L-Mount right angle Brack-It, 0.070" thick SS, includes 2 bolt holes suitable for 5/16" or 1/4" bolts. Solid anchor for signs mounted at a right angle. Bolts not included. 50/box
HBD002 5/16-18" x 3/4" Hex head SS bolt, washer and fiber washer 50/box



Mounting Brackets

Mounting Brackets

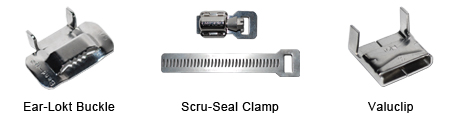

Ear-Lokt Buckles

Part Number Width Quantity
HBC254 1/2" 100/box
HBC255 5/8" 100/box
HBC256 3/4" 100/box


Valuclips

Part Number Width Quantity
HBC153 3/8" 100/box
HBC154 1/2" 100/box
HBC155 5/8" 100/box
HBC156 3/4" 100/box


Scru-Seal Clamping System

Part Number Description Quantity
HBM210 Scru-Seal Kit includes: 25 Scru-Seal racks, 25 housings, VALU-STRAP™ band 3/8" x 0.015" x 100'. Screwdriver used to tighten clamp, not included. 25/box
HBM211 SS Scru-Seal racks and Housings - a rack and pinion system used with a band to create any size clamp. Screwdriver used to tighten clamp, not included. 10/box



Strapping


VALU-STRAP™

Part Number Width Thickness Length
HBC127 3/8" 0.017 in. 200 ft.
HBC128 1/2" 0.017 in. 200 ft.
HBC129 5/8" 0.017 in. 200 ft.
HBC130 3/4" 0.017 in. 200 ft.
HBC133 3/8" 0.017 in. 100 ft.
HBC134 1/2" 0.017 in. 100 ft.
HBC135 5/8" 0.017 in. 100 ft.
HBC136 3/4" 0.017 in. 100 ft.


VALU-STRAP Plus™

Part Number Width Thickness Length
HBC161 3/4" 0.022 in. 100 ft.
HBC163 3/4" 0.022 in. 200 ft.
HBC171 5/8" 0.022 in. 100 ft.
HBC181 1/2" 0.022 in. 100 ft.
HBC183 1/2" 0.022 in. 200 ft.

  • Economical band suitable for light duty applications
  • May be 200 or 300 series SS, typically non-magnetic


Band-It™ Band

Part Number Width Thickness Length
HBC204 1/2" 0.030 in. 100 ft.
HBC205 5/8" 0.030 in. 100 ft.
HBC206 3/4" 0.030 in. 100 ft.

  • 201 SS, bright annealed finish sets the standard with a combination of high strength and quality appearance
  • Offers good resistance to oxidation and many moderate corrosive agents
  • EASY SCALE - Patented imprint on the band to quickly determine band length without waste
  • Strapping available in boxed rolls or durable plastic tote dispensers offered in multiple colors



For additional information on Strapping & Mounting Hardware please contact the office and our customer service representatives will gladly provide more information on your options - Email Us or call (800) 296-6050.
