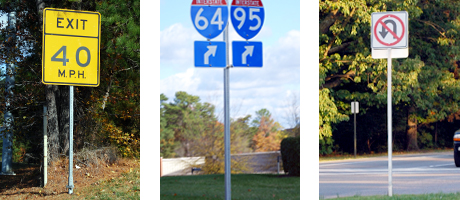

Square Posts



The Telespar Square Post System consists of square, perforated, welded steel tubing, in eight sizes and three gauges. Fully punched holes or "knock-outs" on all four sides allow signs to be mounted back to back and on adjacent sides.

The unique manufacturing method used to produce Telespar tubing permits tubular sections of different sizes to telescope into the next larger size making adjustment, reinforcement and splicing fast and easy. The square shape also provides superior windload capabilities and torsional stability.


Square Posts

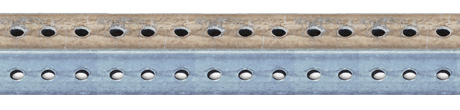

Fully Punched Posts

Fully Punched Posts

Fully Punched Telespar Square Posts with 7/16" pre-punched holes on 1" centers are the standard against which all other signposts are measured. Precision manufactured from the highest-quality steel, Telespar posts are corner-welded to allow smooth telescoping action - a key to the system's versatility and ease of installation.

  • Easy, safe installation by hand or power
  • Convenient sign mounting before installation
  • Superior torsional strength
  • Versatile, four-sided sign mounting at any height
  • Fast, economical replacement of damaged sign posts
  • FHWA-approved yielding capability

Part Number Length x Size Wall Thickness
PSTS10X2GA12 10' x 2" x 2" 12 GA
PSTS10X2.5GA12 10' x 2.5" x 2.5" 12 GA
PSTS12X2GA12 12' x 2" x 2" 12 GA
PSTS12X2.5GA12 12' x 2.5" x 2.5" 12 GA
PSTS14X2.5GA12 14' x 2.5" x 2.5" 12 GA

Part Number Length x Size Wall Thickness
PSTS8X2GA14 8' x 2" x 2" 14 GA
PSTS10X2GA14 10' x 2" x 2" 14 GA
PSTS12X2GA14 12' x 2" x 2" 14 GA
PSTS14X2GA14 14' x 2" x 2" 14 GA

Part Number Length x Size Wall Thickness
PSTS6X2.188GA10 10' x 2 3/16" x 2 2/16" 10 GA (Heavy-Duty)
PSTS10X2.5GA10 10' x 2.5" x 2.5" 10 GA (Heavy-Duty)
PSTS12X2.188GA10 12' x 2 3/16" x 2 3/16" 10 GA (Heavy-Duty)
PSTS12X2.5GA10 10' x 2.5" x 2.5" 10 GA (Heavy-Duty)
PSTS14X2.5GA10 14' x 2.5" x 2.5" 10 GA (Heavy-Duty)
PSTS16X2.5GA10 16' x 2.5" x 2.5" 10 GA (Heavy-Duty)

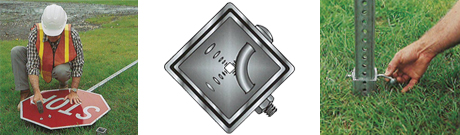

Installation

  1. Drive a minimum 30" piece of 12 gauge Telespar (anchor) into the soil until only 1-2 inches are left exposed. For a 2-piece anchor, use a 18" piece of tubing for a sleeve, one size larger than the anchor. Make sure the anchor and sleeve holes are aligned.
  2. Attach the sign to the post at the desired height using drive rivets or bolts.
  3. Insert the signpost, which is one size smaller than the anchor, about 6-8 inches in the anchor base.
  4. Bolt the signpost to the anchor assembly with a corner bolt.

Square Post Installation

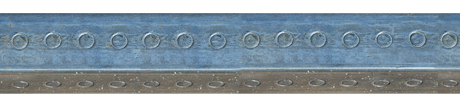

Qwik-Punch® Posts

Qwik-Punch Posts

Qwik-Punch Square Sign Posts are manufactured with 7/16" "knockouts" on all four sides. This feature allows workers in the field to quickly punch holes exactly where they are needed for anchor connections or sign mounting. The balance of the post is left with a smooth unbroken appearance. Qwik-Punch Square Sign Posts offer the same telescoping action and easy installation as standard Telespar Sign Supports.

  • Easy, safe installation by hand or power
  • Convenient sign mounting before installation
  • Superior torsional strength
  • Versatile, four-sided sign mounting at any height
  • Fast, economical replacement of damaged sign posts
  • FHWA-approved yielding capability

Part Number Size Wall Thickness
PSQP8X2GA14 8' x 2" x 2" 14 GA
PSQP10X2GA14 10' x 2" x 2" 14 GA
PSQP11X2GA14 11' x 2" x 2" 14 GA
PSQP12X2GA14 12' x 2" x 2" 14 GA
PSQP14X2GA14 14' x 2" x 2" 14 GA


Slug Punch

Slug Punch

Qwik-Punch posts use a Slug Punch to knock out the holes needed for anchor connections or sign mounting. The rest of the post is left with a smooth, unbroken appearance.






For additional information on Square Posts please contact the office and our customer service representatives will gladly provide more information on your options - Email Us or call (800) 296-6050.
